        Electronic Door Locks

        Talk to an Expert

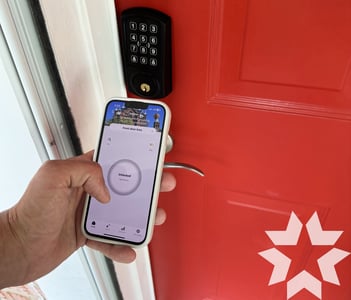

        App & Door



        PDQ Spirit: Electronic Locks, No Wiring Required

        The PDQ Spirit Wireless Lock Platform

        PDQ's Spirit platform brings wireless, app-managed access control to the mechanical lock chassis you already trust. No wiring, no conduit, no rewiring the opening; just a battery-powered lock, a mobile app, and the credentials your residents, staff, and contractors already carry.

        Talk to a Sales Rep

        Why go electronic with PDQ Spirit

        No wiring required

        Every Spirit lock runs on 4 AA batteries (up to 2 years, or hardwired 5V DC where available), so retrofits install in the same time as a mechanical lock swap; no electrician, no conduit, no drywall.

        Built on chassis you already spec

        GTS, SDS, KMS, MRS, CLS, and 6EWS are engineered from PDQ's proven GT, SD, KM, MR, CL, and 6300 mechanical platforms; the same door preps, the same durability, now electrified.

        Managed through one app

        The PDQ Spirit app handles credentials, access schedules, lockdown, and audit history across every lock in the line; one interface for cylindrical, mortise, deadbolt, interconnected, and exit trim.

        Flexible credentials

        RFID card/fob, smartphone (BLE), PIN keypad, and mechanical key override are supported across the line, so properties can standardize credentials across unit doors, common areas, and egress doors.

        Standalone or networked

        Run each opening standalone, or connect for centralized, online management — the platform scales from a single door to a full property.

        Compliant and durable

        UL/cUL fire-rated (per model), ADA compliant, AES 256 encrypted, and assembled in the USA — backed by PDQ's mechanical and electronics warranties.

        Shop electronic locks by door type

        Electronic Cylindrical Lock · Grade 1

        GTS

        Secures common-area and commercial doors. Built from the GT Series Grade 1 cylindrical lock. Supports auto lock/unlock, scheduled access, and request-to-exit monitoring.

        RFID · Smartphone · PIN · Key  |  25-yr mechanical warranty

        View GTS
        Electronic Cylindrical Lock · Grade 2

        SDS

        Built from the SD Series for interior commercial doors and co-working spaces. Available in 4 finishes and 5 lever styles, with optional IPX5 outdoor rating.

        RFID · Smartphone · PIN · Key  |  Optional outdoor rating

        View SDS
        Electronic Deadbolt · Heavy Duty

        KMS

        Wireless electronic deadbolt built from the KM Series. Purpose-built for multifamily unit doors, with door-obstruction alerts and native mobile-credential support.

        RFID · Smartphone · PIN · Key  |  Optional outdoor rating

        View KMS
        Electronic Mortise Lock · Grade 1

        MRS

        Built from the premier MR Series for multifamily unit doors. Latchbolt and key-override monitoring, 4 finishes, and 8 lever styles for design flexibility.

        RFID · Smartphone · PIN · Key  |  Limited lifetime mechanical warranty

        View MRS
        Electronic Interconnected Lock

        CLS

        Wireless interconnected lock built from the CL Series for multifamily and commercial unit doors. Standard door-prep compatible, with standalone or networked operation.

        RFID · Smartphone · PIN · Key  |  Standard door prep

        View CLS
        Electronic Exit Device Trim

        6EWS

        Electrified, wire-free trim for PDQ's 6300 Series Rim and Surface Vertical Rod exit devices — secure, reliable egress for high-traffic doors without running wire.

        RFID · Smartphone · PIN · Key  |  Pairs with 6300R / 6300V

        View 6EWS

        Compare the Spirit line

        Model Door hardware type Built from Best for Warranty (mechanical)
        GTS Cylindrical lock, Grade 1 GT Series Common-area & commercial doors 25 years
        SDS Cylindrical lock, Grade 2 SD Series Interior commercial & co-working doors 2 years
        KMS Deadbolt, heavy duty KM Series Multifamily unit doors 2 years
        MRS Mortise lock, Grade 1 MR Series Multifamily unit doors (higher security) Limited lifetime
        CLS Interconnected lock CL Series Multifamily & commercial unit doors 2 years
        6EWS Exit device trim 6300 Series High-traffic egress doors 2 years
        Talk to a Sales Rep

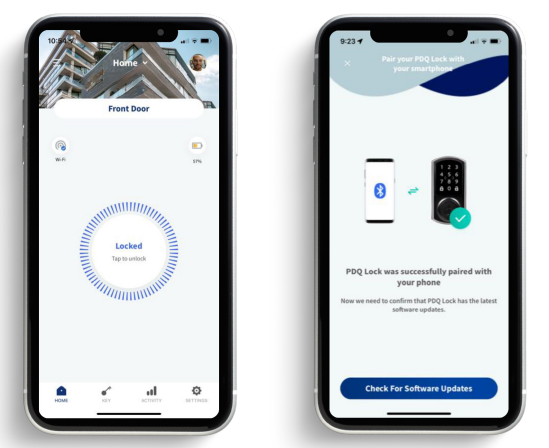

        Two smartphone screens showing the PDQ Lock app: the left screen displays the 'Front Door' lock status as Locked with Wi-Fi and battery indicators; the right screen confirms successful Bluetooth pairing between the phone and a PDQ smart lock, with a button to check for software updates.



        How the Spirit ecosystem works

        Every lock in the Spirit line shares the same underlying platform, so a property or building owner can standardize on one system across every opening type:

        • Credentials: RFID cards/fobs, smartphone (Bluetooth LE 4.2/5.2), PIN keypad, and mechanical key override — supporting MIFARE DESFire, MIFARE Ultralight, and MIFARE Classic, with optional Prox support.
        • Security: AES 256 encryption, FCC Part 15 certified, ADA compliant, and UL/cUL fire-rated (rating varies by model, from 20 minutes to 3 hours).
        • Management: The PDQ Spirit app lets property and facility teams schedule access windows, track access events and audit history, monitor battery status, and trigger lockdown or do-not-disturb modes remotely.
        • Modes: Run standalone at each door, or connect locks for centralized, networked management across a building or property.
        • Power: 4 AA alkaline batteries rated for up to 2 years of use, with low-battery alerts sent through the app before a lockout risk.

        Where electronic locks fit on your project

        Multifamily

        KMS, MRS, and CLS are purpose-built for unit entry doors, giving residents mobile-credential access while property teams keep centralized audit control.

        Commercial & coworking

        GTS and SDS secure common-area and interior doors; conference rooms, suites, and shared offices, without pulling wire through finished space.

        Egress & life safety

        6EWS electrifies existing 6300 Series exit devices for high-traffic doors that need reliable, monitored egress alongside secure access control.

        FAQs

        Do PDQ's electronic locks require wiring?

        No. Every lock in the Spirit line (GTS, SDS, KMS, MRS, CLS, and 6EWS) runs on battery power with no wiring required, which is what makes them well suited to retrofit projects. GTS and SDS also support a hardwired 5V DC option.

        What's the difference between a keypad lock and PDQ's electronic locks?

        "Keypad lock" usually refers to a lock with a PIN pad as its only credential type. PDQ's Spirit locks support PIN entry, but also RFID, smartphone (Bluetooth), and mechanical key override in the same unit — so a single Spirit lock covers what would otherwise take several different hardware types.

        Can these locks be managed remotely?

        Yes. The PDQ Spirit app supports both standalone, door-by-door management and centralized, networked (online) management across a property.

        Which lock is right for my project?

        It depends on the door hardware you're replacing: use GTS or SDS for cylindrical lock openings, KMS for deadbolt openings, MRS for mortise lock openings, CLS for interconnected lock openings, and 6EWS to electrify a 6300 Series exit device. Talk to a PDQ sales rep to confirm the right fit for your door prep.

        Consult with an Expert

        PDQ's experts have been providing customers with high-quality products and services for over 40 years. Whether you're retrofitting unit doors or specifying a new build, contact us today for more information on how to bring wireless, app-managed access control to your property.
