March 1, 2026
When you're specifying door hardware for a commercial project, choosing between cylindrical and tubular locksets can feel confusing, but understanding the differences helps you make the right choice for security, durability, and budget.

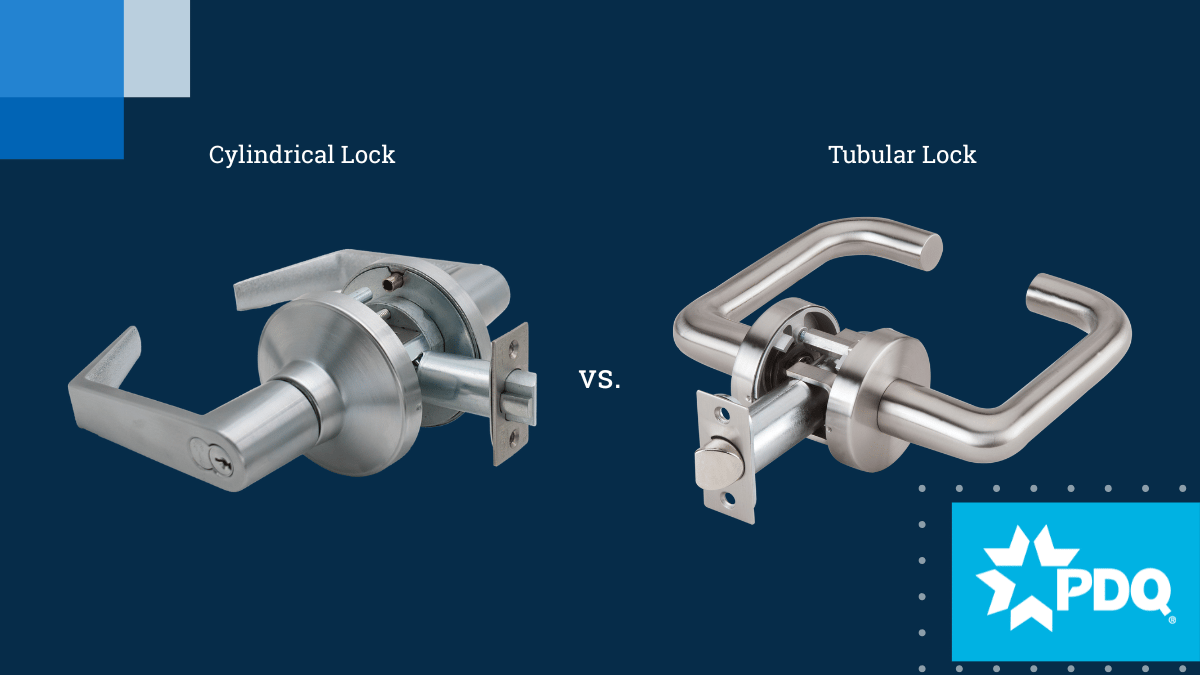

Cylindrical vs. Tubular Locksets at a Glance
Quick Summary: Which lockset should you use?
- Cylindrical locksets: Best for high-traffic commercial doors where strength, longevity, and security are priorities.
- Tubular locksets: Practical for lower-traffic interior doors where faster installation and cost efficiency matter most.
- Rule of thumb: Use cylindrical on heavy-use, code-sensitive openings; use tubular on lighter-use doors where extreme durability isn’t required.
We’ll walk you through how each lock is built, where it fits best, and which PDQ products align with your applications so you can specify with peace of mind.
What Makes Cylindrical and Tubular Locksets Different
You’re specifying hardware for a new office building or upgrading locks in a school, and you pause to ask: What’s the difference between cylindrical and tubular locksets?
That’s a smart and responsible question.
When you’re making decisions that affect security, durability, and long-term costs, it’s natural to want clarity.
How Cylindrical Locksets Are Constructed and Installed
The difference starts with how each lock is constructed and installed.
Most cylindrical locksets are installed with 3 holes drilled into the door. One main bore hole with a top and bottom through bolt hole. However, some cylindrical locks just need a bore hole like PDQ’s SF Series lock. The latch bolt attaches to the outside edge of the chassis, and the lock contains the complete retraction mechanism inside the chassis.
This design is known for its strength and durability, making cylindrical locks ideal for high-traffic commercial applications.
How Tubular Locksets Are Constructed and Installed
Tubular locksets, on the other hand, are installed through a single bore hole drilled through the door. The lock body passes through this hole and is secured with a tubular chassis. This lock has a spindle that travels through a mechanism inside the latch; normally, the two sides move simultaneously to pull the bolt back.
Tubular locks are typically lighter-duty than cylindrical locks, but they offer a simpler installation process and a lower price point.
Both lock types serve important roles in commercial settings. The key is understanding when each one makes the most sense for your application. We’ll walk you through the specific use cases, performance standards, and product options so you can make the right choice with peace of mind.
When Cylindrical Locksets Are the Right Choice for Your Building
Cylindrical locksets are built for durability and security in high-traffic commercial environments. If your doors see heavy use, think schools, hospitals, office buildings, or government facilities, cylindrical locks are typically the right choice.
These locks are engineered to withstand over a million cycles of use in some cases.
- PDQ’s XGT Series Extra Heavy Duty Cylindrical Lock is cycle tested to over 3 times the BHMA standards. That means it’s designed to handle the toughest applications without compromising performance. The 41-degree lever rotation reduces torque, which lengthens the lifespan of the lock significantly.
- PDQ’s GT Series Heavy Duty Cylindrical Lock offers the same premium durability with a range of finish and lever styles.
Both the XGT and GT series are backed by a lifetime warranty and assembled in Lancaster, PA. For facilities that need reliable, long-lasting security, these Grade 1 Cylindrical Locks deliver unmatched strength.
For medium-traffic areas or projects with tighter budgets, PDQ’s GP Series Grade 2 Cylindrical Lock is a strong option. Its lever torque has been tested to over 3 times the ANSI/BHMA standards, making it the toughest Grade 2 lock available.
The GP Series is complementary to PDQ’s Grade 1 Locks, with the same levers and rose options available. This allows you to match the aesthetic across your cylindrical locks while adjusting the grade based on traffic levels.
PDQ also offers the SD Series Grade 2 Cylindrical Lock and SF Series Grade 2 Cylindrical Lock. Both are value-engineered to meet quality and cost expectations:
- The SD features removable thru-bolts for easier installation and is crafted from cold rolled steel for strength.
- The SF offers durability and security at a great price, with various lever, finish, and rose options. It’s ideal for multi-family housing, senior living, student housing, and light commercial applications.
Use cylindrical locksets when you need:
- High-traffic durability
- Grade 1 or Grade 2 security performance
- Long-term value with extended warranties
- Compatibility with access control systems
- A wide range of aesthetic options to match your building design
When Tubular Locksets Make Sense for Your Application
Tubular locksets are a practical choice for lower-traffic commercial applications where ease of installation and cost efficiency are priorities. These locks are simpler to install than cylindrical locks because they require only one large hole through the door face, rather than two separate bores.
PDQ’s TJ Series Tubular Lock is designed for commercial environments that don’t require the heavy-duty performance of cylindrical locks. The TJ Series offers a wide variety of lever, finish, strike, and rose options to complement your space. Many of these style options are shared with PDQ’s MR Series Mortise Locks, allowing you to integrate the two lock types seamlessly across your projects.
The TJ Series is ADA compliant and features 5 function options, giving you flexibility to match your security needs. It comes with a 5-year warranty, providing confidence in its performance. This tubular lock is ideal for interior doors in office buildings, storage rooms, utility closets, private offices, and other low to medium-traffic areas.
Tubular locksets also work well in retrofit situations where you’re replacing existing tubular locks and want to avoid re-drilling the door. The installation process is faster and requires less labor, which can reduce project costs and keep timelines on track.
Use tubular locksets when you need:
- Lower-traffic applications
- Cost-effective solutions without sacrificing quality
- Faster installation with less door prep
- Aesthetic consistency with other lock types
- ADA-compliant access control
Comparing Cylindrical vs. Tubular Locksets: Security, Durability, and Installation
When choosing between cylindrical and tubular locksets, it’s helpful to compare security, durability, and installation requirements side by side. Each lock type offers distinct advantages depending on your project needs.
Security and Durability
- Cylindrical locks are engineered for superior strength and longevity.
- PDQ’s XGT, GT, and GP Series cylindrical locks are tested to exceed BHMA standards by 2 to 3 times, proving their ability to withstand high-traffic environments.
- These locks feature robust internal mechanisms and reinforced construction, making them ideal for exterior doors and high-security applications.
- Tubular locks, while not as heavy-duty as cylindrical locks, still provide reliable security for interior and low-traffic applications.
- PDQ’s TJ Series Tubular Lock is ADA compliant and built to meet commercial standards, offering dependable performance where extreme durability isn’t required.
Cost Considerations
- Tubular locks are typically more cost-effective upfront due to their simpler construction and faster installation.
- Cylindrical locks, while more expensive initially, offer better long-term value through extended warranties, superior durability, and reduced maintenance costs over time.
Always check with your local building department to ensure your lock selection meets code requirements. Some applications may require specific grades or certifications, especially for fire-rated doors or high-occupancy spaces.
Making the Right Decision for Your Commercial Project
Choosing the right lockset comes down to understanding your building’s specific needs, traffic levels, and budget constraints. Not every door requires the same level of security or durability, and that’s where the flexibility of cylindrical and tubular locks becomes valuable.
- For high-traffic areas like main entrances, corridors, classrooms, and healthcare facilities, cylindrical locksets are the smart choice.
- For interior doors, storage rooms, private offices, and low-traffic areas, tubular locksets like PDQ’s TJ Series provide reliable security at a lower cost.
- Traffic levels and expected cycles of use
- Security requirements and code compliance
- Budget constraints and total cost of ownership
- Aesthetic consistency across your building
- Compatibility with existing or planned access control systems
PDQ’s XGT Series, GT Series, GP Series, SD Series, and SF Series offer a range of performance levels and price points, allowing you to match the lock to the application. These locks are built to last, backed by strong warranties, and designed to integrate with access control systems.
The simplified installation process and aesthetic flexibility make tubular locks a practical option when heavy-duty performance isn’t required.
When specifying hardware, consider these factors:
If you’re unsure which lock type is right for your project, talk to a local inspector or hardware expert. It’s better to be safe than sorry. PDQ’s customer service and technical support teams are here to help you make the right choice with confidence.
Need help choosing the right lockset for your commercial project? Explore PDQ’s cylindrical and tubular lock solutions or contact us for personalized advice. Contact us today to find the right balance of speed, value, and ease for your next project.
