Product Description

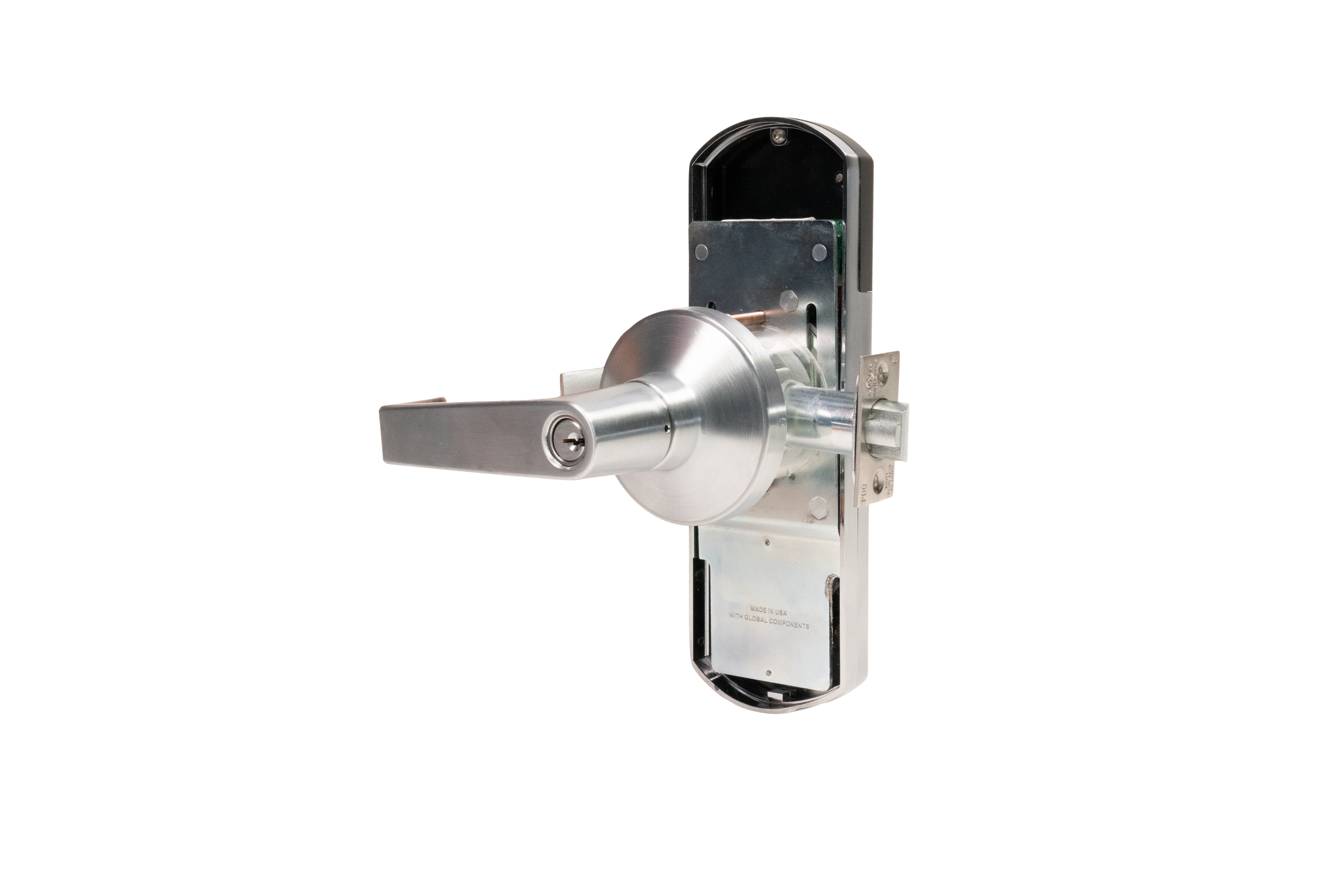

Introducing PDQ’s GTS electronic cylindrical lock. This lock was designed to secure common area doors in multifamily and commercial settings with efficiency and reliability. Our GTS cylindrical lock requires no wiring, making for easy installation and maintenance. With native support for mobile credentials, our GTS electronic lock ensures easy and secure access. Contact our sales team today to learn more and get yours!
Docs & Downloads:
The GTS was crafted from PDQ’s GT Series Grade 1 Cylindrical Lock. See the list of top benefits and features below.
- Designed for quick installation
- 4 AA Alkaline batteries last up to 2 years or 5V DC
- Able to schedule specific access windows
- Log and track access events and status
- Enable auto lock/unlock for enhanced security
- Battery status and low battery alerts
- Local-activated lockdown for instant door security
- Do not disturb mode that temporarily blocks access
- Monitor egress with request to exit function
The GTS lock sets the standard for modern access control solutions.
Features & Benefits
Specifications
Explore the specifications of our GTS electronic cylindrical lock in the chart below. This lock was designed to meet the highest standards of security and performance in both commercial and multifamily access control systems.
| DOOR THICKNESS: | • 1-3/4” to 2-1/4" |
| BACKSET: | • 2-3/4” (Standard) • 5" (Optional) |
| CREDENTIALS: | • RFID • Smartphone • PIN • Mechanical Key |
| KEYWAYS: | • Conventional • SFIC • High Security • UL437 |
| CREDENTIAL COMPATIBILITIES: | • Prox (Optional) • MIFARE DESFire EV1/EV2/EV3/Light • MIFARE Ultralight EV1/AES • MIFARE Classic |
| COMMUNICATION: | • BLE 4.2 • BLE 5.2 |
| ENCRYPTION: | • AES 256 |
| BATTERIES REQUIRED: | • 4 AA Alkaline Batteries |
| OPERATING TEMPERATURES: | • -20C to 65C • 0-95% Humidity (Non-Condensing) |
| CERTIFICATIONS & COMPLIANCES: | • FCC Part 15 • UL/cUL 10C 45-Minutes • Complies with ADA (Americans with Disabilities Act) |
| MODES: | • Standalone • Online |
| FINISHES: | • 606 (US4), 613E, 622 (US19), 626 (US26D) |
| WARRANTY: | • Twenty-Five (25) year Mechanical / Two (2) year Electronics |
| COUNTRY OF ORIGIN: | • Assembled in USA |
Lever Designs & Finishes
Explore a variety of available finishes and levers for our GTS electronic cylindrical lock. Unlock the ideal finishing touch for your project.
Finishes
Levers
