Product Description

Introducing PDQ’s PL Series padlock. This padlock features a US26D plated solid brass body for corrosion resistance and protection against bolt cutters. The molybdenum shackle and blue bumper also enhance the durability and security.

Our PL series is available in three different sizes and features a patented shackle change design for easy replacement. The double locking ball bearings provide greater protection and its compatibility with 6 or 7 pin SFIC cylinders ensures versatility to the user. We offer various shackle diameters and heights to choose from so you can customize your padlock to meet your specific needs.

Connect with one of our sales representatives today to get your PL Series padlock.

Docs & Downloads:

Brochure

Installation Instructions

Discover the features and benefits of our PL Series Padlock in the list below

Crafted with a US26D plated solid brass body
Enhanced with a protective blue bumper
Features an anti-cut molybdenum shackle that ensures superior resistance to tampering
Backed by a double ball bearing locking mechanism for added security
Accepts rekeyable and changeable 6 or 7 pin SFIC cylinders, providing customizable security solutions
Includes a set screw for easy conversion to key retaining mode
Has a patented shackle change design that allows hassle-free shackle replacement

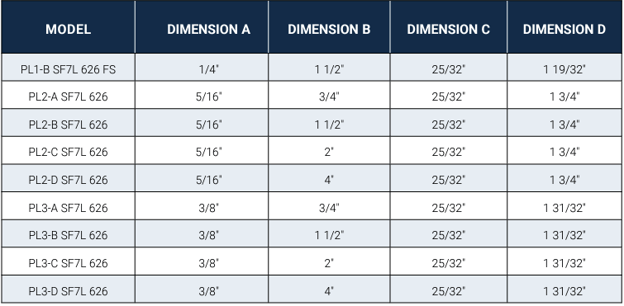

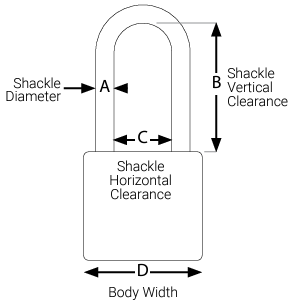

Available in three body sizes 1 9/16", 1 25/32", and 1 31/32"
Available in three shackle diameters 1/4" (PL1), 5/16" (PL2), and 3/8" (PL3)
Available in four shackle heights 3/4" (A), 1 1/2" (B), 2" (C), and 4" (D)
Frangible shackle is available on our (PL1-B) model only
Stainless steel shackle is available by special order only

Our padlocks offer top security for every application. Contact a sales rep to get yours today.

Features & Benefits

FAQs

What shackle sizes does the PL Series padlock come in?

PL padlocks come in three body sizes (1-9/16" (PL1), 1-25/32" (PL2), and 1-31/32" (PL3)), with matching shackle diameters of 1/4", 5/16", and 3/8" respectively, plus four shackle heights (3/4", 1-1/2", 2", and 4") to fit different hasps, chains, and gates.

What makes the PL padlock's shackle resistant to bolt cutters?

The standard PL shackle is molybdenum-alloy construction, chosen specifically for bolt-cutter resistance. A stainless steel shackle is available by special order for corrosion-prone outdoor settings, and a frangible (breakaway) shackle is offered only on the PL1-B model for applications requiring a designed weak point.

Can the PL padlock be keyed to match my PDQ door locks?

Yes, the PL Series accepts 6 or 7-pin small-format interchangeable cores (SFIC), so it can be keyed into the same core-based master key system already used on PDQ mortise and cylindrical locks rather than carrying a separate key.

What security features does the PL padlock use to resist picking or prying?

It uses a double ball-bearing locking mechanism to resist shimming and prying, a patented shackle-change design that lets a locksmith swap shackles without disassembling the body, and a set-screw option to convert it to key-retaining mode so the key can't be removed unless the shackle is locked.

What's the difference between the PL1, PL2, and PL3 padlock models?

They differ in body size and shackle diameter: PL1 is 1-9/16" with a 1/4" shackle, PL2 is 1-25/32" with a 5/16" shackle, and PL3 is 1-31/32" with a 3/8" shackle. Larger models suit heavier gates and chains, while smaller models fit lockers and cabinets.

Is the PL padlock suitable for outdoor use on gates or fencing?

The PL body is solid brass (US26D plated, 626 satin chrome finish) and the standard shackle is molybdenum, both materials chosen for durability in exposed settings, and it ships with a protective blue bumper to reduce surface wear. PDQ's product page does not list a specific weatherproof/IP rating for this series.
