Product Description
The PDQ Spirit Hub expands how far users can connect, control, and manage their Spirit-powered openings, giving them more flexibility, greater range, and a stronger mobile experience. It bridges a reliable Bluetooth 4.2 (BLE) connection out to the locks furthest from your network, and exposes an OSDP v2.2 connection so Spirit-powered openings can report into an access control panel you already run.
Pair the Spirit Hub with any lock in the PDQ Spirit line: GTS, SDS, KMS, MRS, CLS, and 6EWS, to extend wireless range or bring those openings into a wired access control system.
Docs & Downloads:
The Spirit Hub was built to extend the range and reach of PDQ's Spirit wireless platform. See the list of top benefits and features below.
- Streamlined configuration: get a Hub commissioned and Spirit-powered openings online quickly, without a lengthy setup process.

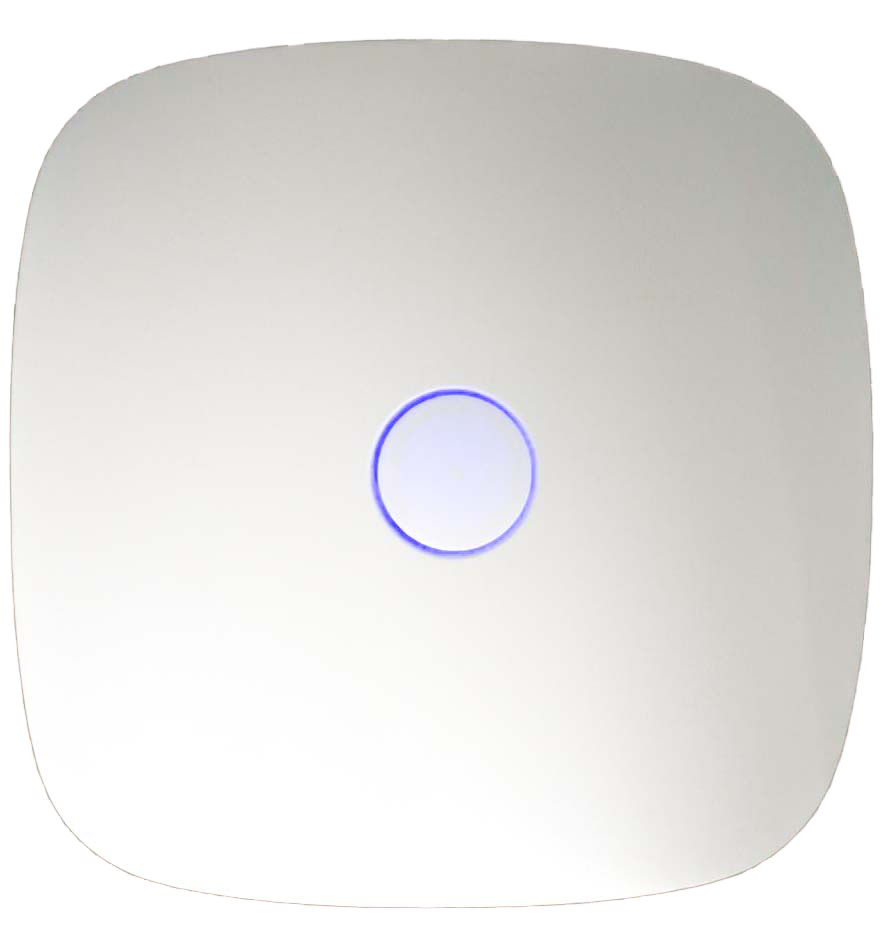

- LED status indicator: an at-a-glance read on connection status, no laptop or app required for a quick health check.
- Reliable BLE 4.2 connection to the lock: dependable Bluetooth range extension to the openings furthest from the access point.
- Remote updates: push firmware updates to the Hub remotely, without a truck roll.
- OSDP connectivity: bring Spirit-powered openings into your new or existing access control panel using OSDP v2.2.
- Power over Ethernet or optional power supply: run a single PoE cable for power and data, or use the optional power supply where a PoE drop isn't available.
- Managed through the PDQ Spirit app
- Indoor use only
The Spirit Hub keeps every Spirit-powered opening on your property connected, current, and easy to manage.
Features & Benefits
FAQs
What does the Spirit Hub do?
It extends the Bluetooth (BLE 4.2) range between the Spirit network and your locks, adds OSDP v2.2 connectivity for integration with an access control panel, and supports remote firmware updates, all delivered over a Power-over-Ethernet or DC-powered connection.
Do I need a Spirit Hub for every Spirit installation?
Not necessarily. The Hub is an accessory for properties that need extended wireless range, OSDP integration with an existing access control panel, or centralized remote management. Talk to a PDQ sales rep to determine whether your project needs one.
How is the Spirit Hub powered?
Power over Ethernet (a single cable for both power and network connectivity), or an optional 12–24V DC power supply where a PoE drop isn't available.
Can the Spirit Hub connect to our existing access control panel?
Yes. OSDP v2.2 connectivity, wired through the Hub's RS-485 terminals, lets it report into an OSDP-compatible access control panel.
Which Spirit locks is the Hub compatible with?
The Spirit Hub works with any lock in the PDQ Spirit line: GTS, SDS, KMS, MRS, CLS, and 6EWS.
Specifications
Explore the specifications of the Spirit Hub below, designed to extend PDQ's Spirit platform across your property.
| PART NUMBER: |
• SP90048 |
| TECHNOLOGY: |
• BLE 4.2 / Wi-Fi / LAN / OSDP v2.2 |
| COLOR: |
• White |
| POWER: |
• Power over Ethernet (PoE), or 12–24V DC power supply |
| CONNECTIONS: |
• PoE LAN port • RS485 A-IN / RS485 B-IN • RS485 A-OUT / RS485 B-OUT • GND-OUT |
| MOQ: |
• 1 |
Download our Section 08710 Specification here.
