        Lever, Pull and Thumb Latch Trim for PDQ Exit Devices

        Exit device trim is the lever, knob, pull or thumb latch on the outside of a door with an exit device, and it controls who can enter from that side. PDQ makes lever trim, pull trim, thumb latch trim and escutcheon trim for its 6300, 6400 and 4200 Series exit devices, plus wired and wireless trim for access control. Start with the exit device on the door, then choose the trim style and function.

        Compare Exit Device Trim

        Exit Device Trim by Series

        Each trim is built for one exit device family. Find your device series on the card badge, then pick the style and function.

        • 6300 and 6400 Series: our most popular exit devices. 6-prefix trim fits the 6300 Series (wide stile), and the 6N, 6T, 6G and 6C also fit the 6400 Series (narrow stile). All of it is non-handed or field reversible.
        • Electrified and wireless: the 6W99 and 6EWS add access control to 6300 devices.
        • 4200 Series: every 4-prefix trim fits the 4200R rim and 4200V surface vertical rod devices.
        PDQ 6W wide escutcheon lever trim for 6300 Series exit devices
        6300 · Wide Escutcheon Lever

        6W Wide Escutcheon

        A wide lever escutcheon for 6300 devices that covers existing holes on retrofits.

        View 6W
        PDQ 6S rose lever trim for 6300 Series exit devices
        6300 · Rose Lever

        6S Rose Trim

        Lever rose trim for 6300 devices on standard 161 prepped doors with thru bolts.

        View 6S
        PDQ 6P stainless steel pull plate trim for 6300 Series exit devices
        6300 · Pull Plate

        6P Pull Plate

        A stainless steel pull plate for 6300 devices that works with standard rim cylinders.

        View 6P
        PDQ 6W99 electrified wide escutcheon lever trim for 6300 Series exit devices
        6300 · Wired Electrified

        6W99 Electrified Trim

        The 6W lever trim, locked and unlocked by a wired access control system on 6300 devices.

        View 6W99
        PDQ 6EWS wireless electronic exit device trim with keypad and card reader
        6300R / 6300V · Wireless

        6EWS Wireless Trim

        Battery-powered lever trim with card, phone, PIN and key entry for the 6300R and 6300V.

        View 6EWS
        PDQ 4EW wide escutcheon lever trim for 4200 Series exit devices
        4200 · Wide Escutcheon Lever

        4EW Wide Escutcheon

        A wide lever escutcheon that covers existing holes when you retrofit a door. ADA compliant.

        View 4EW
        PDQ 4EN narrow escutcheon lever trim for 4200 Series exit devices
        4200 · Narrow Escutcheon Lever

        4EN Narrow Escutcheon

        A slimmer lever escutcheon for a lower-profile look. ADA compliant.

        View 4EN
        PDQ 4S rose lever trim for 4200 Series exit devices
        4200 · Rose Lever

        4S Rose Trim

        Philadelphia, Boston or Miami lever on a rose for standard 161 prepped doors.

        View 4S
        PDQ 4K sectional ball knob trim for 4200 Series exit devices
        4200 · Ball Knob

        4K Sectional Knob

        Sectional ball knob trim in classroom and passage functions.

        View 4K
        PDQ 4GW grip pull trim for 4200 Series exit devices
        4200 · Grip Pull

        4GW Grip Pull

        A bar-style grip pull, with a thumb piece on the classroom and passage functions.

        View 4GW
        PDQ 4P pull plate trim for 4200 Series exit devices
        4200 · Pull Plate

        4P Pull Plate

        A flat pull plate in exit only, dummy and night latch functions.

        View 4P

        Compare PDQ Exit Device Trim

        Model Fits SeriesTrim StyleEscutcheon WidthFunctionsElectrified
        6N 6300R, 6300V, 6300C, 6300M; 6400R, 6400V, 6400CLeverNarrow01, 02, 03, 08, 09, 14 (no 03 on 6300M)No
        6W 6300R, 6300V, 6300C, 6300MLeverWide02, 08, 09, 14Yes, as 6W99
        6S 6300R, 6300V, 6300CLeverRose (161 prep)02, 08, 09, 14No
        6T 6300R, 6300V, 6300C; 6400R, 6400VThumb latchNot applicable05, 06, 15No
        6G 6300R, 6300V, 6300C, 6300M; 6400R, 6400V, 6400CPullNot applicable02, 03No
        6P 6300R, 6300V, 6300CPullNot applicable01, 03No
        6C 6300R, 6300V, 6300C, 6300M; 6400R, 6400V, 6400CCylinder onlyNot applicable03No
        6W99 6300R, 6300V, 6300C, 6300MLeverWide99Wired, 12-24 VDC/VAC
        6EWS 6300R, 6300VLeverWide (built on the 6W)Electronic: scheduled access, auto lock/unlockWireless, battery powered
        4EW 4200R, 4200VLeverWide02, 08, 09, 14No
        4EN 4200R, 4200VLeverNarrow02, 08, 09, 14No
        4S 4200R, 4200VLeverRose (161 prep)02, 08, 09, 14No
        4K 4200R, 4200VBall knobNot applicable08, 14No
        4GW 4200R, 4200VPullNot applicable02, 03, 05, 15No
        4P 4200R, 4200VPullNot applicable01, 02, 03No

        For thicker doors, 6300 and 6400 trim can be adapted to 2-1/2" to 2-3/4" doors (TD4) or doors up to 3" (TD5), except on the 6300M. An antimicrobial coating (AM) is available on the 6N, 6W, 6T, 6G and 6P.

        Key: 01 = exit only or blank · 02 = dummy (pull only) · 03 = night latch · 05 / 08 = classroom · 06 / 09 = storeroom · 14 / 15 = passage · 99 = electrified storeroom. Functions 05, 06 and 15 use a thumb piece instead of a lever. R = rim · V = surface vertical rod · C = concealed vertical rod · M = mortise.

        Ready to spec or order?Find A Sales Rep

        Need Certification Details?

        See every UL, ANSI/BHMA and ADA listing for PDQ exit devices, trim and the rest of our hardware in one filterable matrix.

        View Door Hardware Certifications
        architechtstockphoto-473849812-612x612

        How to Choose Exit Device Trim

        PDQ 6N narrow escutcheon lever trim, which fits both 6300 wide stile and 6400 narrow stile exit devices

        Step 1

        Match the trim to the exit device and the stile

        Trim is built for one device family, so start with the exit device on the door. The 6300 and 6400 Series use trim that starts with 6, and the 4200 Series uses trim that starts with 4. Then check the stile. Narrow escutcheons like the 6N work on both 6300 wide stile and 6400 narrow stile devices. Wide escutcheons like the 6W work only on wide stile devices, and they cover existing holes when you retrofit a door. The 6S and 6P also fit the 6300 only.

        On a 2-1/8" aluminum storefront stile, the 6400 takes only the 6C cylinder only trim. See the 4200 trim submittal sheet for 4200 options.

        PDQ 6W exit trim, showcasing a sleek and durable design, perfect for enhancing security and accessibility in commercial door applications.



        Step 2

        Pick the trim style and function

        Lever trim comes on a wide escutcheon, a narrow escutcheon or a rose. Pull trim and thumb latch trim give a fixed handle with no lever to turn, and the 4K covers doors that call for a knob.

        The function sets what the outside trim does. Passage leaves it free, classroom lets a key lock or unlock it, and storeroom keeps it locked so entry takes a key. Night latch adds key entry to a pull or cylinder trim, and dummy trim opens the door only when the inside bar is locked down.

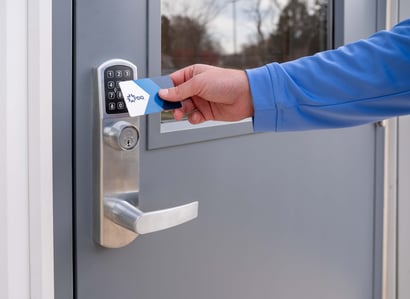

        6EWS in use



        Step 3

        Add access control if the door needs it

        Use the 6W99 on 6300 devices wired to an access control system. It ships fail secure and changes to fail safe in the field. Where there is no wiring, the 6EWS fits the 6300R and 6300V on doors 1-3/4" to 2-1/4" thick.

        Download the 6300 and 6400 Trim Submittal Sheet

        Where PDQ Exit Device Trim Fits

        University campus building

        Education

        Teachers need a fast way to lock a classroom door from outside. Use classroom function lever trim like the 6N or 6W, and add 6EWS wireless trim to 6300R or 6300V entrances for card or phone access.

        Education Solutions
        Aerial view of North Georgia Medical Plaza, a two-story stone and brick medical office building with a covered entrance canopy

        Healthcare

        Staff-only rooms need trim that stays locked from the corridor. Use storeroom function trim, add the AM antimicrobial coating on high-touch doors, and use the 6W99 where the door ties into access control.

        Healthcare Solutions
        Carhartt corporate office building

        Retail Storefronts

        Aluminum storefront doors use the narrow stile 6400 Series, so pair them with 6N, 6T or 6G trim. On a 2-1/8" stile, the 6C gives staff key entry. The 4200 trims cover back-of-house doors.

        Commercial Solutions

        Exit Device Trim FAQs

        What is exit device trim?

        Exit device trim is the lever, knob, pull or thumb latch on the outside of a door with an exit device. It sets what someone outside can do, such as open the door freely, unlock it with a key, or open it only when the bar is locked down. People inside always leave by pushing the bar. It is also called outside trim or panic bar trim.

        Do I need outside trim on a panic bar?

        No. Outside trim is only needed when people must open the door from outside. An exit-only door can go without trim, or use a blank or exit only function such as the 6N, 6P or 4P in function 01. If staff need key entry with no handle, the 6C cylinder only trim adds a key on the night latch function.

        Which trim fits PDQ 6300 and 6400 Series exit devices?

        The 6300 Series takes the 6N, 6W, 6S, 6T, 6G, 6P and 6C, plus the electrified 6W99 and, on the 6300R and 6300V, the wireless 6EWS. The narrow stile 6400 Series takes the 6N, 6T, 6G and 6C, but the 6T does not fit the 6400C. The 4200 Series uses its own trim, such as the 4EW and 4EN.

        What trim functions are available?

        PDQ exit device trim comes in exit only, dummy, night latch, classroom, storeroom and passage functions, plus electrified storeroom on the 6W99. Lever trims offer the widest range, while pulls and the 6C focus on dummy and night latch. Not every function comes in every trim style, so check the compare table.

        Can exit device trim be electrified?

        Yes. The 6W99 is a wired version of the 6W that locks and unlocks the lever from an access control system on 12 to 24 VDC or VAC, and it changes from fail secure to fail safe in the field. The 6EWS is wireless trim for the 6300R and 6300V that opens by RFID card, smartphone, PIN or key and runs on four AA batteries. Both are assembled in the USA.
