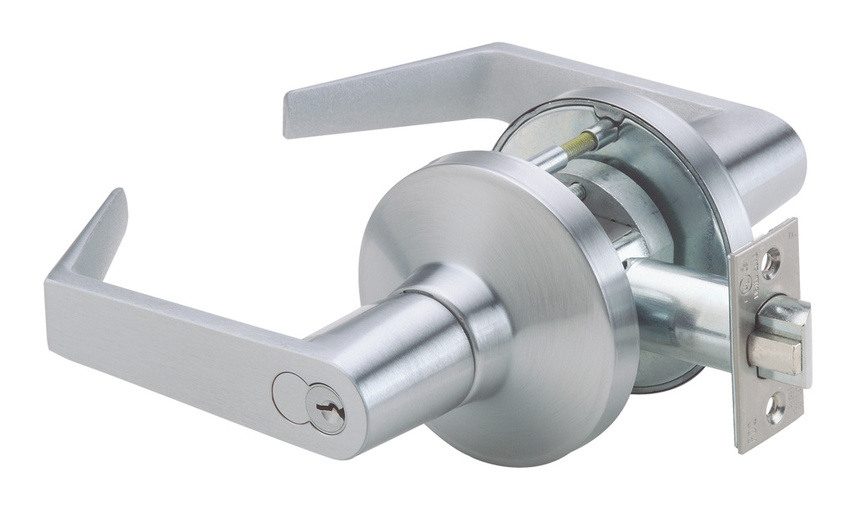

XGT Series - Grade 1

The XGT Series Extra Heavy Duty Cylindrical Lock offers premium quality and durability. Cycle tested to over 3X BHMA standards, the XGT is built to withstand the toughest applications. The 41-degree lever rotation provides reduced torque, lengthening the lifespan of the product. The XGT series is backed by a lifetime warranty and assembled in Lancaster, PA.

Features & Benefits

• Heavy duty diecast chassis with cast stainless steel lever spindle
• 13-Gauge steel anti-rotation plate installed on secure side
• 3-Lever Styles: Philadelphia (SFL and LFL), Boston (SFL), Miami (SFL)
• 7-Finishes: 605(US3), 606(US4), 612(US10), 613(US10B), 622(US19), 625(US26), 626(US26D)
• 3,000 lbf-in lever torque resistance is 4X BHMI/ANSI standard
• 2 : 1 latch bolt throw allows 41-degree lever rotation

Certifications

• UL 10C listed 3-hour fire door, for single doors up to 4’ x 8’
• Optional 3/4” (19mm) throw deadlocking fire latch (FRL) available for pairs of doors
• Certified to ANSI/BHMA A156.2, Grade 1
• California Education Code Compliant (Functions XGT135, XGT135LED, XGT145)
• Federal Specification FF-H-10C (Superseded by A156.2)
• Approved for Florida HVHZ (High Velocity Hurricane Zone). PDQ Product Approval: FL 21376. Design load rating: ± 70.0 PSF for single door (3’ x 7’)
• Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings

Warranty

• Limited Lifetime

Country of Origin

• Assembled in the U.S.A. with U.S. and foreign material
• Meets requirements of the Buy American Act as a COTS product manufactured in the United States
