6400 Series - Surface Vertical Rod - Narrow Stile

Narrow Stile | 6400V

Product Description

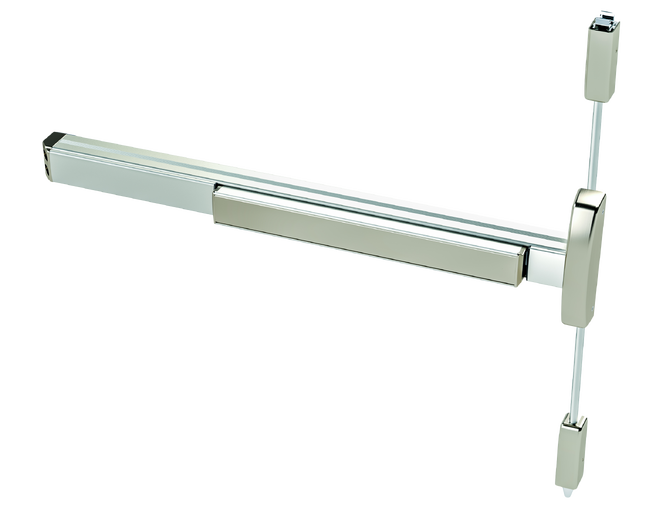

Improve your security with PDQ’s 6400V surface vertical rod (svr) exit device. To ensure protection, the exit device features a ¾” toggle latch on top, and a ⅝” travel drop bolt at the bottom. The 6400V svr exit device is perfect for narrow stile double door applications, or for when a narrow look is preferred.

At PDQ, we want our customers to be confident in the door hardware they choose for their building. Manufactured with quality and reliability in mind, our 6400V exit device is a product you can count on. Connect with a sales rep in your area, and choose PDQ to upgrade your security.

ADA compliant logo hurricane-symbol-k antimicrobial-K

Docs & Downloads:

Brochure

Architectural Submittal Sheet

Templates

Installation Instructions

Discover why PDQ’s 6400V surface vertical rod exit device is a dependable option.

It is engineered with a cast chassis support, to increase the strength and durability
It features a cush spring that delivers quiet operation when someone presses and releases the push bar
The compression spring within is designed to make sure the touch bar returns after every time it gets pressed
For pry resistance, a heavy-duty flush end cap is added to the exit device
There are 6 finishes to choose from: 605(US3), 606(US4), 613E, 622(US19), 626(US26D), 630(US32D)

For an innovative solution, tailored for your security needs, choose PDQ’s 6400V exit device.

Features & Benefits

Certifications

Confidently make your building compliant and safe with PDQ’s 6400V svr exit device. This narrow stile exit device holds the following certification.

It's ETL UL 305 certified
It's ETL UL 10C and CAN/ULC-S104 listed for 3-hour fire doors, accommodating double doors up to 8' x 8' (LBR), or 8' x 10' (single or double egress pair)
It's certified to meet ANSI/BHMA A156.3 Grade 1 standards
It's FL #40297 certified, meaning it can withstand +50/-50 psf 8080 18ga Pair force
It complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 regulations. This ensures accessibility and usability in diverse building environments

To have peace of mind, trust PDQ and choose our 6400V exit device for your next project.

Specifications

Designed and engineered for excellence, the 6400V exit device offers superior security and functionality. View its specifications to discover its features that make it a reliable choice for your security needs.

RAIL:	• Extruded aluminum
LATCH:	• Top - Stainless Steel 3/4” toggle • Bottom - 5/8” Travel Drop Bolt • Less bottom rod option
HAND:	• Device is non-handed • Trim is non-handed or field reversible
DOGGING:	• Hex key dogging standard • Cylinder dogging optional • Dogging not available for fire labeled devices
MINIMUM STILE WIDTH:	• 6300 - 3-1/2” • 6400 - 3 1/8” with 639027/639057 strike and 2 1/8” on aluminum frames with blade stop strike
DOOR THICKNESS:	• 1-3/4” - 2” (Consult factory for other)
DOOR WIDTH:	• 24”, 36”, 48” standard
DOOR HEIGHT:	• Panic - Up to 10’ • Fire - See fire ratings charts in Price Book
STRIKE:	• Cast top strike, plate bottom strike
FINISHES:	• 605 - Polished Brass, 606 - Satin Brass, 613E - Dark Oxidized Satin Bronze (Equivalent), 622 - Flat Black, 626 - Satin Chrome, 630 - Satin Stainless Steel, 630F - Full Stainless Steel • Optional Anti-Microbial Coating available on 626 and 630
FASTENERS:	• Includes machine screws and wood screws • SNB Optional
WARRANTY:	• Ten (10) year limited warranty
ELECTRIFIED OPTIONS:	• Motorized Latch Retraction • Request to Exit/Signal Switch • Alarmed Exit • Latch Bolt Monitor • ISMC Connectors • Delayed Egress (Can only be used on a door with a 3 1/2" or larger stile)
CERTIFICATIONS, LISTINGS, COMPLIANCES:	• ETL listed for UL 305 “Panic”, listed for UL 10C “Fire Exit Hardware” up to 3 hours • ANSI/BHMA A156.3 Grade 1 • Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings • FL # +50/-50 psf 8080 18ga Pair • Meets requirements of the BAA as a COTS product manufactured in the United States • Meets CBC Chapter 11B-309.4 when ordered with 5P option (Available with Top & Bottom Rod and Less Bottom Rod (LBR))
