Product Description

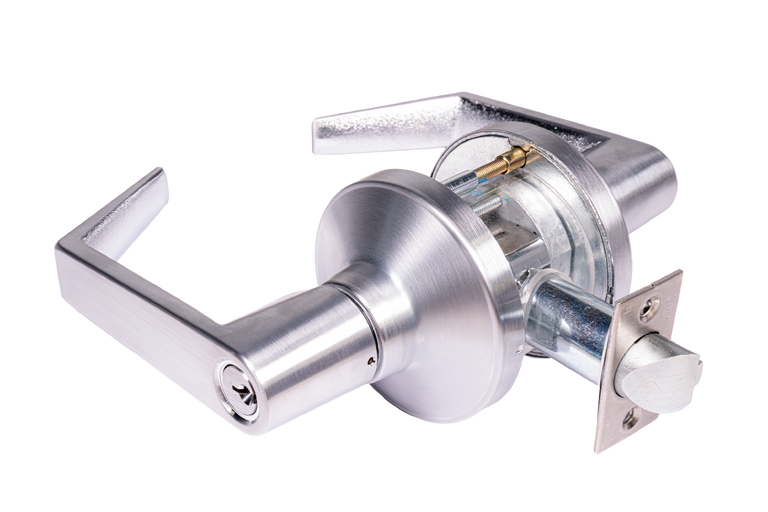

The GT Series Heavy Duty Cylindrical Lock offers premium quality and durability in a range of finish and lever styles. Cycle tested to over 3 times the BHMA standards, our GT Series is built to withstand the toughest of applications. The 41-degree lever rotation provides reduced torque, lengthening the lifespan of the lock significantly. This proves PDQ’s GT Series to be a great solution for your high-traffic areas.
The GT series is backed by a 25-year warranty and assembled in Lancaster, PA. Reach out to one of our dedicated sales reps today and learn how PDQ can provide value-engineered door hardware solutions to you!
Docs & Downloads:
Listed below are the top features and benefits of PDQ’s GT Series Heavy Duty cylindrical lock.
- Heavy duty diecast chassis with machined billet steel spindle
- 13-Gauge steel anti-rotation plate installed on secure side
- 3-Lever Styles: Philadelphia (SFL and LFL), Boston (SFL), Miami (SFL)
- 7-Finishes: 605(US3), 606(US4), 612(US10), 613E, 622(US19), 625(US26), 626(US26D)
- 2,200 lbf-in lever torque resistance is 3X BHMI/ANSI standard
- 2 : 1 latch bolt throw allows 41-degree lever rotation
Connect with a PDQ sales representative today with any questions, concerns, and interest in purchasing our door hardware solutions!
Features & Benefits
Certifications
PDQ’s GT Series is backup up by a wide range of certifications and compliances, as listed below.
- UL 10C listed 3-hour fire door, for single doors up to 4’ x 8’
- Certified to ANSI/BHMA A156.2, Grade 1
- California Education Code Compliant (Functions GT135, GT135LED, GT145)
- Approved for Florida HVHZ (High Velocity Hurricane Zone). PDQ Product Approval: FL 21376. Design load rating: ± 70.0 PSF for single door (3’ x 7’)
- Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings
Choose the GT Series to secure your buildings today!
Specifications
Explore the specifications of the GT lock below. Contact your region’s PDQ sales representative with any questions you may have.
| FOR DOORS: |
• 1-3/4” to 2-1/4” thick • Preset for 1-3/4” door |
| APPLICATION |
• Through door thru-bolting |
| DOOR PREP: |
• Standard ANSI A156.115 (161) for Cylindrical Locks |
| BACKSET: |
• 2-3/4” |
| CHASSIS: |
• Heavy duty diecast, investment cast, chromated cold rolled steel and stainless steel mechanism. • Billet Steel spindles for locking functions |
| FRONT: |
• 2-1/4” x 1-1/8” • Stainless Steel or Wrought Brass • Beveled 1/8” in 2” |
| STRIKE: |
• ASA standard • T-Strike or Full Lip Strike optional • Stainless Steel or Wrought Brass |
| LEVERS: |
• Philadelphia, Boston, Miami |
| ROSE: |
• 3-3/8” DIA Wrought |
| LATCHBOLT: |
• 9/16” Throw Deadlocking |
| HAND: |
• Non-handed |
| TRIM: |
• Solid diecast PHL, BSN or MIA Levers • 41° Lever Rotation Standard with 2-3/4” Backset • Wrought Brass Roses, Concealed Screws • 65° Lever Rotation Standard with 3/4” latch for double doors (Ordered from factory only) and all 2-3/8”, 3-3/4” and 5” Backsets (Ordered from factory only) |
| KEYS: |
• Two (2) per Lock |
| KEYWAYS: |
• SCC standard (Schlage C Compatible) • Also available in keyways of other manufacturers |
| INTERCHANGEABLE CORE: |
• Available for all keyed functions • 6 or 7-pin • Large Format IC Core available for PHL Lever ONLY • Compatible with Best, Falcon and Arrow small format IC cores |
| CYLINDER: |
• 6-pin Brass Insert Cylinder keyed to 5-pins • Standard High Security and UL437 Cylinders Available |
| KEYING: |
• Options: MK, CMK or GMK • Zero Bitted (KO), Keyed Different (KD) or Keyed Alike (KA) Can be keyed into existing master key systems |
| FINISHES: |
• 605 (US3), 606 (US4), 612 (US10), 613E, 619 (US15), 622 (US19), 625 (US26), 626 (US26D) • Optional Antimicrobial Coating 626 (USD26D) only • Optional Weatherized Finish for 626 (USD26D) only |
| CERTIFICATIONS, LISTINGS, COMPLIANCES: |
• UL listed for 3 hrs, for single doors up to 4’0” x 8’0” • Certified to ANSI/BHMA A156.2, Grade 1 • California Education Code Compliant (Functions GT135, GT135LED, GT145) • Federal Specification FF-H-10C (Superseded by A156.2) • Approved for Florida HVHZ (High Velocity Hurricane Zone). PDQ Product Approval: FL 21376. • Design load rating: ± 70.0 PSF for single door (3’ x 7’) • Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings |
| WARRANTY: |
• Twenty-five (25) year Limited Warranty |
| COUNTRY OF ORIGIN: |
• Proudly Assembled in the U.S.A. with U.S. and foreign material. Meets requirements of the Buy American Act as a COTS product manufactured in the United States |
Download our Section 08710 Specification here.
Lever Designs & Finishes
Discover PDQ’s wide range of finishes and levers for our heavy-duty cylindrical locks. Choose from the options below to complement your next project!
Finishes
Levers
