GT276 Indicator Lock - Grade 1

| 276

Product Description

The GT276 is a Grade 1 heavy duty cylindrical lock built for privacy bedroom and bathroom applications. A push button on the inside lever locks the outside lever, and a built-in occupancy indicator shows whether the room is in use, with emergency release from outside, by rotating the inside lever, or automatically when the door closes. It's a fit for federal and state government, healthcare, higher education, hospitality, houses of worship, industrial, K-12, office, and public building projects. UL listed, certified to ANSI/BHMA A156.2 Grade 1, ADA and ICC/ANSI 117.1 compliant, and backed by a 25-year limited warranty.

Docs & Downloads:

Brochure

Architectural Submittal Sheet

The GT276 pairs Grade 1 heavy duty construction with a privacy function built for rooms where knowing occupancy status matters, giving specifiers and facility teams a lock that's as practical day to day as it is durable.

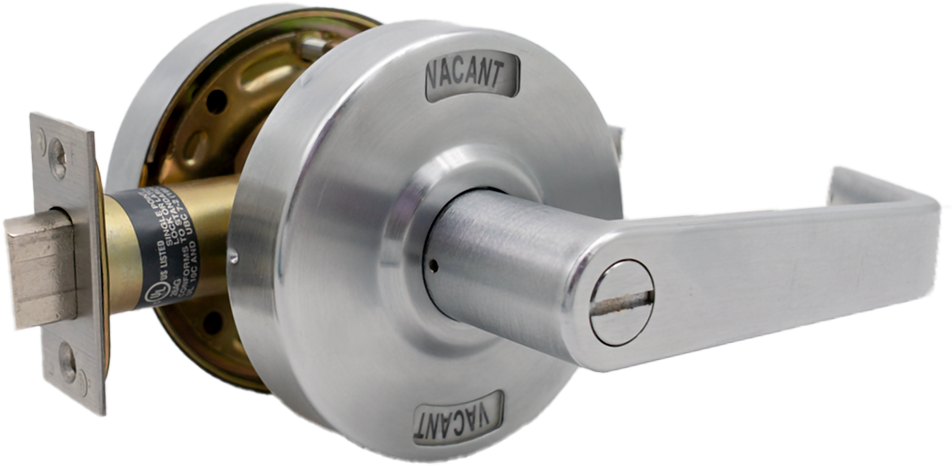

Built-in occupancy indicator shows locked/unlocked status from outside the door, so users know before they try the lever
Emergency release unlocks the outside lever from outside, by rotating the inside lever, or automatically when the door closes
Grade 1 heavy duty construction, zinc-plated chassis, pressure cast zinc levers
25-year limited warranty
3 lever styles and 5 finishes for design flexibility

With the emergency release built into every unit, facility teams get the privacy of a locking door without sacrificing safe, code-compliant access when it's needed most.

Features & Benefits

Certifications

Listed below are the certifications that the PDQ GT276 indicator lock holds:

This lock is UL listed for up to 3 hours, suitable for single door openings
Meets ANSI/BHMA A156.2 Grade 1 standards
Complies with the ADA (Americans with Disabilities Act)
Complies with ICC/ANSI 117.1 for accessible and usable buildings
TAA compliant, with a country of origin of South Korea (KR)

FAQs

What does the indicator on the GT276 show?

The GT276's indicator is visible from the outside of the door and shows whether the room is occupied or vacant, so someone approaching the door knows the status before trying the lever.

Is the GT276 ADA compliant?

Yes. It complies with the ADA and with ICC/ANSI 117.1 requirements for accessible and usable buildings.

What door thickness and prep does the GT276 need?

It fits doors from 1-3/4" to 2-1/8" thick and uses a through-door, thru-bolted installation. Use the Standard 160 prep for a 2-3/8" backset or the Standard 161 prep for a 2-3/4" backset; both preps need additional thru-bolt holes.

How is the GT276 different from a standard privacy lock?

A standard privacy function locks and unlocks from a push button with no way to tell the status from outside. The GT276 adds a visual occupancy indicator to that same privacy function, so it fits single-occupant restrooms and similar rooms where users need to know at a glance whether the room is in use.

What is the GT276's warranty?

The GT276 is backed by PDQ's 25-year limited warranty.

Specifications

ned for classroom security.

FOR DOORS:	• 1-3/4”” to 2-1/8”
APPLICATION	• Through door thru-bolting
DOOR PREP:	• Standard 160 prep for 2-3/8” backset • Standard 161 for 2-3/4” backset • Both preps will require additional thru bolt holes
BACKSET:	• 2-3/4” • 2-3/8”
FRONT:	• 2-1/4” x 1-1/8” • Stainless Steel or Wrought Brass
STRIKE:	• ASA standard • T-Strike or Full Lip Strike optional • Stainless Steel or Wrought Brass
LEVERS:	• Philadelphia, Boston, and Miami • Pressure cast zinc
ROSE:	• 3-9/16” DIA Wrought
LATCHBOLT:	• 1/2” throw
HAND:	• Non-handed
TRIM:	• PHL, BSN or MIA Levers • Wrought Brass Roses, Bronze or Zinc
FINISHES:	• 605 (US3), 606 (US4), 613E, 622 (US19), 626 (US26D)
CERTIFICATIONS, LISTINGS, COMPLIANCES:	• UL listed for 3 hrs, for single doors • Certified to ANSI/BHMA A156.2, Grade 1 • Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings
WARRANTY:	• Twenty-five (25) year Limited Warranty
COUNTRY OF ORIGIN:	• TAA compliant. Country of orgin: KR
