Product Description

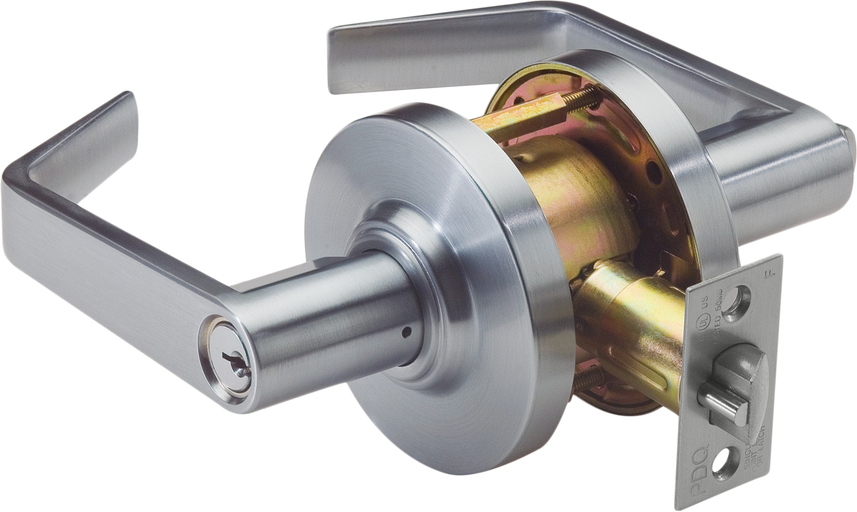

PDQ’s SD Series Grade 2 Cylindrical Lock has been value-engineered to meet your quality and cost expectations! Choose between 5 lever styles and 4 finish options to match your aesthetic and any other locks you may have. Our SD lock features removable thru-bolts for easier install and is crafted from cold rolled steel for strength.
Backed by a reassuring 5-year warranty, you can put your trust in the reliability and performance of this lock. Contact one of our knowledgeable sales representatives in your region to learn more!
Docs & Downloads:
Below are the top features and benefits that the grade 2 SD lock has to offer
- Heavy-gauge cold rolled steel locking mechanism - Dichromate for corrosion resistance
- Removable thru-bolts
- 5-Lever Styles: Philadelphia, Boston, Miami, Memphis, Orlando
- 4-Finishes: 605(US3), 613E, 622(US19), 626(US26D)
Choose PDQ’s SD Series lock for your grade 2 needs.
Features & Benefits
Certifications
PDQ’s SD Series Cylindrical Lock holds the certifications listed below for safety, security, and compliance.
- UL/CUL 10C listed 3-hour fire door, for single doors up to 4’ x 8’
- Certified to ANSI/BHMA A156.2 Grade 2
- Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings
Choose PDQ for peace of mind and high-quality door hardware!
FAQs
What makes the SD lock different from PDQ's other Grade 2 locks?
SD offers the widest backset range in PDQ's Grade 2 lineup (2-3/8", 2-3/4", 3-3/4", and 5"), plus five lever styles (Philadelphia, Boston, Miami, Memphis, Orlando) and optional high-security UL437-rated cylinders. It's the choice for non-standard door prep or an upgraded cylinder on a Grade 2 chassis.
Can the SD lock accept a high-security cylinder?
Yes, SD is available with high-security and UL437-listed cylinder options in addition to its standard 6-pin SCC keyway, letting specifiers upgrade pick- and drill-resistance without moving up to a Grade 1 lock.
Is the SD lock compatible with electric strikes?
Yes, SD's thru-bolt installation and standard ASA strike prep work with electric strikes and standard hinge preparations, useful when a door needs remote release without fully electrifying the lock itself.
What door thickness and warranty does SD offer?
SD fits doors 1-3/8" to 1-3/4" thick (preset for 1-3/4") and carries a 5-year limited warranty, with a heavy-gauge, dichromate-coated cold rolled steel mechanism for corrosion resistance.
Is SD fire-rated for use on fire doors?
Yes, SD is UL listed for 3-hour fire doors on single doors up to 4'0" x 8'0" and is also UL/CUL 10C and TAA compliant.
Specifications
Explore the specifications of the SD Series Cylindrical Lock listed below. Feel free to contact one of our knowledgeable sales reps in your region with any questions!
| FOR DOORS: |
• 1-3/8” to 1-3/4” thick • Preset for 1-3/4” door |
| APPLICATION: |
• Through door thru-bolting • Fits standard 160 and 161 Door prep • Thru-Bolts are removable |
| BACKSET: |
• 2-3/4” standard • 2-3/8” , 3-3/4” , 5” optional |
| CHASSIS: |
• Heavy-gauge cold rolled steel mechanism • Dichromated for corrosion resistance |
| FRONT: |
• 2-1/4” x 1-1/8” or 2-1/4” x 1” • Stainless Steel or Wrought Brass |
| STRIKE: |
• ASA standard • T-Strike or Full Lip Strike optional • Stainless Steel or Wrought Brass |
| LEVERS: |
• Philadelphia (SFL and LFL), Boston (SFL), Miami (SFL), Memphis (SFL), Orlando (SFL) |
| ROSE: |
• 3-3/8” DIA Wrought |
| LATCHBOLT: |
• 1/2” Throw |
| HAND: |
• Non-handed (Except Memphis) |
| TRIM: |
• Solid diecast PHL, BSN, MIA, MEM and ORL Levers • Wrought Brass Roses • Concealed Screws |
| KEYS: |
• Two (2) per Lock |
| KEYWAYS: |
• SCC standard (Schlage C Compatible) • Also available in keyways of other manufacturers |
| INTERCHANGEABLE CORE: |
• 6 or 7-pin • Compatible with Best, Falcon & Arrow. Not available with Memphis lever • Large Format IC Core available for PHL Lever ONLY |
| CYLINDER: |
• 6-pin Brass Insert Cylinder keyed to 5-pins • Standard High Security Cylinders Available |
| KEYING: |
• Options: MK, CMK or GMK / Zero Bitted (KO), Keyed Different (KD) or Keyed Alike (KA) • Can be keyed into existing master key systems |
| FINISHES: |
• 605 (US3), 613E, 622 (US19), 622 (19D), 626 (US26D) |
| CERTIFICATIONS, LISTINGS, COMPLIANCES: |
• UL listed for 3 hrs, for single doors up to 4’0” x 8’0” • Certified to ANSI/BHMA A156.2 Grade 2 • Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings • TAA compliant. Country of origin: KR |
| WARRANTY: |
• Five (5) year Limited Warranty |
Download our Section 08710 Specification here.
Lever Designs & Finishes
Choose from a range of hardware finishes and lever options available for PDQ's SD Series Cylindrical Lock!
Finishes
Levers
