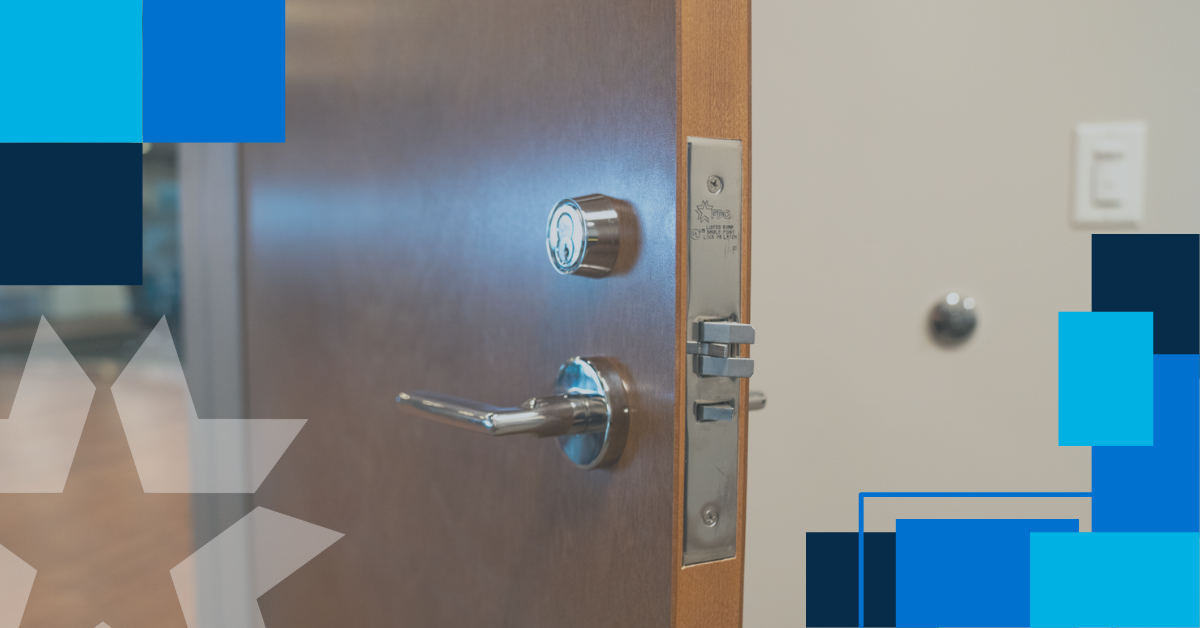

How to Install and Troubleshoot a Commercial Mortise Lock

If you've already worked through identifying your mortise lock (confirming it's a rectangular case lock recessed into the door edge, rather than a cylindrical or tubular lockset) and specifying the right function and finish, the next questions are almost always the same: how do you install it correctly, and when something goes wrong, how do you fix it without replacing hardware that still has years of service life left.

Commercial mortise locks are built to last. PDQ's MR Series, for example, is cycle-tested to more than 14 million operations. But that longevity depends on correct installation and door prep from the start. A lock that's mortised slightly off-template, or a strike plate that's a fraction of an inch out of alignment, will cause problems that look like a defective lock but are actually installation issues.

This guide walks through the installation process step by step, the most common problems that come up afterward, and how to tell whether a mortise lock needs a repair or a full replacement.

In This Article

What Tools Do You Need to Install a Commercial Mortise Lock?

On most jobs, where the door arrives pre-machined for the lock, a standard hardware installer's kit covers it:

• A drill with assorted bits and a 1" to 1-1/4" hole saw for the cylinder and thumbturn bores
• Screwdrivers and Allen wrenches for the case, trim, and strike
• A level, plus standard eye, ear, and dust protection

If the door isn't factory-prepped and you need to cut the mortise pocket yourself, add chisels in multiple widths and a mallet, or a mortising jig/router, for the pocket itself, plus an angle grinder with a cutoff wheel for hollow metal doors and files to clean up the cut.

The manufacturer's door prep template and function-specific instructions are the single most important item on this list either way. PDQ publishes installation instructions and videos for every MR Series configuration, so before boring or cutting into a door, confirm you have the right document for your lock's exact function code. The face bores, backset, and strike details all vary by function. Find your MR Series installation instructions.

Does the Door Come Pre-Machined for the Lock, or Do You Cut the Pocket Yourself?

On most commercial construction and renovation projects, the door itself arrives already prepped for the specified lock. The mortise pocket, backset, and case cutout are machined at the door manufacturer's factory according to the hardware schedule, not cut in the field. This is exactly why getting the hardware spec right before doors are ordered matters so much: PDQ's guide, "Spec Is Right: How to Specify PDQ's MR Series Mortise Lock," calls out explicitly specifying "mortise prepped doors" for exactly this reason. A door ordered without that prep turns a same-day lock installation into a field mortising job.

When a door arrives correctly pre-machined, the installer's real job shifts from cutting a pocket to boring the correct face holes for the lock's specific function (a storeroom function, for example, needs a different cylinder and trim bore pattern than an entrance or apartment function), and then fitting the case, cylinder, thumbturn, and trim into the prep that's already there.

Field mortising, cutting the full pocket with a jig, router, or chisels, is mostly reserved for two scenarios:

• Replacing an older lock on a door that predates factory door-prep coordination.
• A retrofit project where matching an existing, non-standard mortise pocket wasn't practical to order pre-machined.

How Do You Install a Commercial Mortise Lock on a Pre-Machined Door?

This is the process for the large majority of commercial installations, where the door arrives already cut for the lock.

1. Confirm the door prep matches your lock. Before boring anything, verify the pocket, backset, and faceplate cutout on the door match your lock's function and model. Catching a mismatch now is far easier than after the face holes are bored.
2. Bore the face holes for your lock's function. Different functions call for different combinations of exterior cylinder and interior thumbturn or lever bores. Use the manufacturer's function-specific template to mark and bore only the holes your configuration needs.
3. Insert the lock case into the pocket. Slide the case into the factory-cut pocket and secure it with the faceplate screws, then test the latch and deadbolt operation by hand before installing trim.
4. Install the cylinder and thumbturn. Insert and secure each component through its bore, testing key and thumbturn operation as you go.
5. Install the lever or knob trim. Mount trim on both sides of the door per the manufacturer's instructions. This is also where a field-reversible lock, like PDQ's MR Series, gets configured for the door's specific handing.
6. Confirm the strike plate and test everything. Most factory-prepped frames arrive with the strike cutout already cut as well; confirm alignment, secure the strike, and cycle the lock several times from both sides before considering the installation complete.

How Do You Install a Mortise Lock on a Door That Isn't Pre-Machined?

If a door does arrive unprepped, or you're retrofitting an existing door, the process starts with two extra steps before picking up where the pre-machined process above leaves off:

1. Mark the door from the manufacturer's template. Position the template at standard lockset height (38 to 40 inches from the finished floor) and transfer the mortise pocket outline, faceplate location, and bore centerlines onto the door edge and both faces.
2. Cut the mortise pocket and faceplate recess. On wood doors, drill a series of overlapping holes within the outline and square the corners with a chisel or mortising jig/router. On hollow metal doors, cut the opening with an angle grinder and file the edges smooth. Either way, remove enough material so the faceplate sits flush with the door edge. A faceplate that sits proud of the door edge is one of the most common causes of a door that won't close flush against the frame.

From there, bore the face holes, install the case, cylinder, thumbturn, trim, and strike exactly as described for a pre-machined door above.

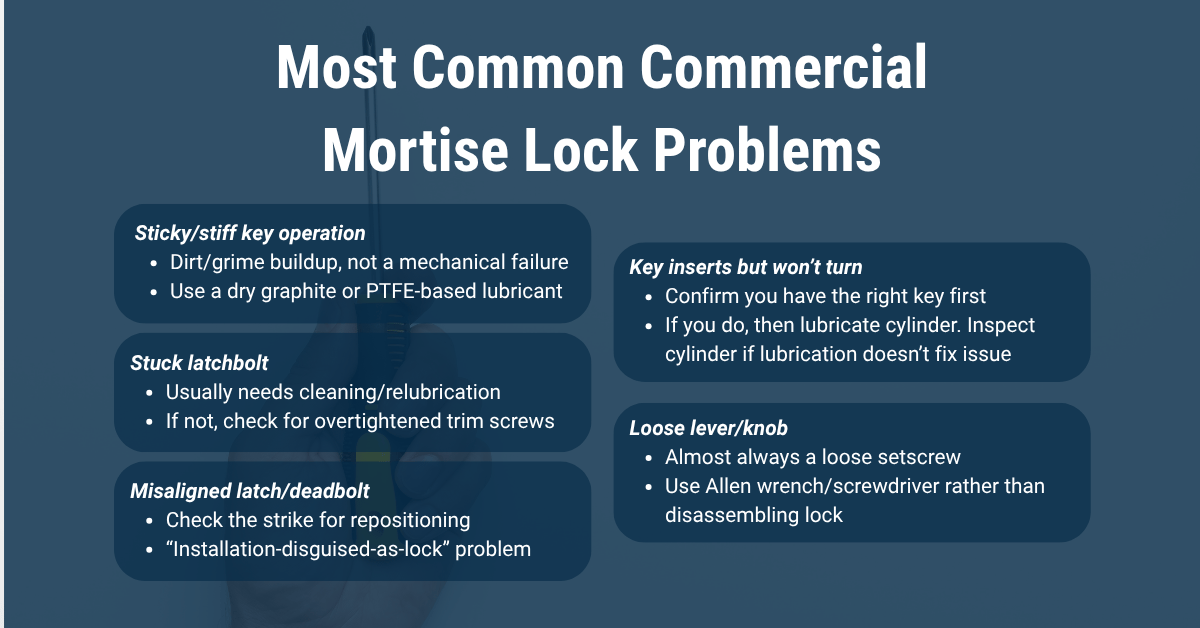

What Are the Most Common Commercial Mortise Lock Problems?

Most mortise lock issues that come up after installation fall into one of five categories, and they're almost all field-fixable without replacing the lock.

• Sticky or stiff key operation. Usually caused by dirt or grime buildup inside the cylinder rather than a mechanical failure. Apply a dry graphite or PTFE-based lubricant into the keyway and work the key back and forth to distribute it. Never use a petroleum-based lubricant like WD-40, which attracts more dust and grime over time.
• Latchbolt stuck extended or retracted. Usually a cleaning issue: remove the lock case, clear out old lubricant and debris, and re-lubricate with a dry lubricant. If that doesn't fix it, check for overtightened trim screws. Installers using a drill or impact gun can squeeze the lock body enough to bind the latch, and backing off those screws by hand often solves it.
• Misaligned latch or deadbolt. If the bolt doesn't line up cleanly with the strike plate, check for scrape marks on the strike, which usually indicate the strike needs to be repositioned slightly rather than the lock itself being at fault. This is the single most common "installation problem disguised as a lock problem."
• Key inserts but won't turn. First, confirm it's actually the right key: mixed-up keys on similar rings are a common cause. If the key checks out, lubricate the cylinder; if that doesn't help, remove and inspect the cylinder for internal damage or wear.
• Loose lever or knob. Almost always a loose setscrew, tightened with a small Allen wrench or screwdriver rather than requiring any lock disassembly.

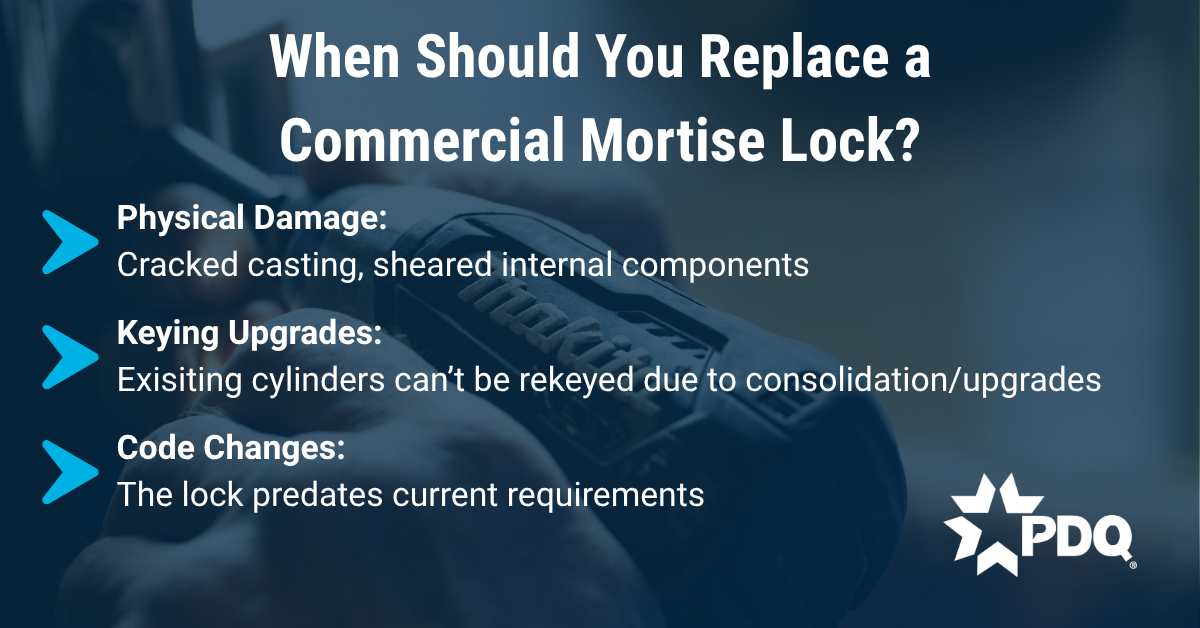

When Should You Repair vs. Replace a Commercial Mortise Lock?

Commercial mortise lock cases are built for extremely long service life. PDQ's MR Series is cycle-tested to more than 14 million operations, well beyond the 1 million cycles required for ANSI/BHMA Grade 1, so a lock that's having problems is far more likely to need cleaning, lubrication, or a strike adjustment than a full replacement. Replacement generally makes sense in three situations:

• Physical damage: a cracked casting or sheared internal components inside the lock case.
• Keying upgrades: the building's keying system is being consolidated or upgraded and the existing cylinders can't be rekeyed to match.
• Code changes: the lock predates current requirements. For example, a mortise lock without ADA-compliant lever trim on a door that now needs to meet accessibility standards.

Outside of those cases, a properly maintained mortise lock case will typically outlast several rounds of rekeying and trim updates.

Do Commercial Mortise Locks Require Professional Installation?

Not by law in most jurisdictions. But there's a real practical reason most facilities use a trained locksmith or hardware installer rather than general maintenance staff: on a labeled fire door, the lock is part of a tested door assembly, and installation that doesn't match the manufacturer's template can affect the door's fire rating even if the lock itself is UL listed. PDQ's MR Series is UL/CUL 10C listed for use on 3-hour fire-rated doors, but that listing assumes correct, template-matched installation. That's the same reason it's worth involving a qualified installer or your PDQ distributor on any fire-rated opening.

What's Different About Installing an Electrified Mortise Lock?

PDQ's MR199 electrified mortise lock uses the same door prep as the mechanical MR Series but adds motor-driven locking and unlocking, which means installation also involves running low-voltage wiring from a power supply (such as PDQ's PS220) to the lock, and configuring it for fail-safe or fail-secure operation based on the opening's life-safety requirements. On wood doors specifically, this also requires adding a raceway, a routed channel cut into the door, to run the wiring from the hinge side to the lock side; hollow metal doors typically don't need this extra step. That added coordination is why electrified installations typically involve the electrical or access-control contractor in addition to the door hardware installer, and it's covered in more depth in "Spec Is Right: How to Specify PDQ's MR Series Mortise Lock", PDQ's guide to specifying the MR199 correctly from the start.

Key Takeaways

• Most commercial mortise lock installations start with a factory pre-machined door. The pocket is already cut to the hardware schedule, and the installer's main job is boring the correct face holes for the lock's specific function. Field-cutting a mortise pocket from scratch is mainly a retrofit scenario.
• The majority of post-installation problems, including sticky keys, stuck latchbolts, and misalignment, are caused by dirt, worn lubricant, or strike positioning, not a failed lock case.
• Never use petroleum-based lubricants like WD-40 in a lock cylinder; use a dry graphite or PTFE-based lubricant instead.
• Replace a mortise lock only when the case is physically damaged or it needs to be upgraded for keying or accessibility reasons. Otherwise, cleaning and adjustment will usually resolve the issue.
• On fire-rated doors, correct template-matched installation is what preserves the door assembly's UL listing, which is the main reason professional installation is recommended even where it isn't legally required.
